N1020 Temperature Controller

N1020 Temperature Controller

In Stock

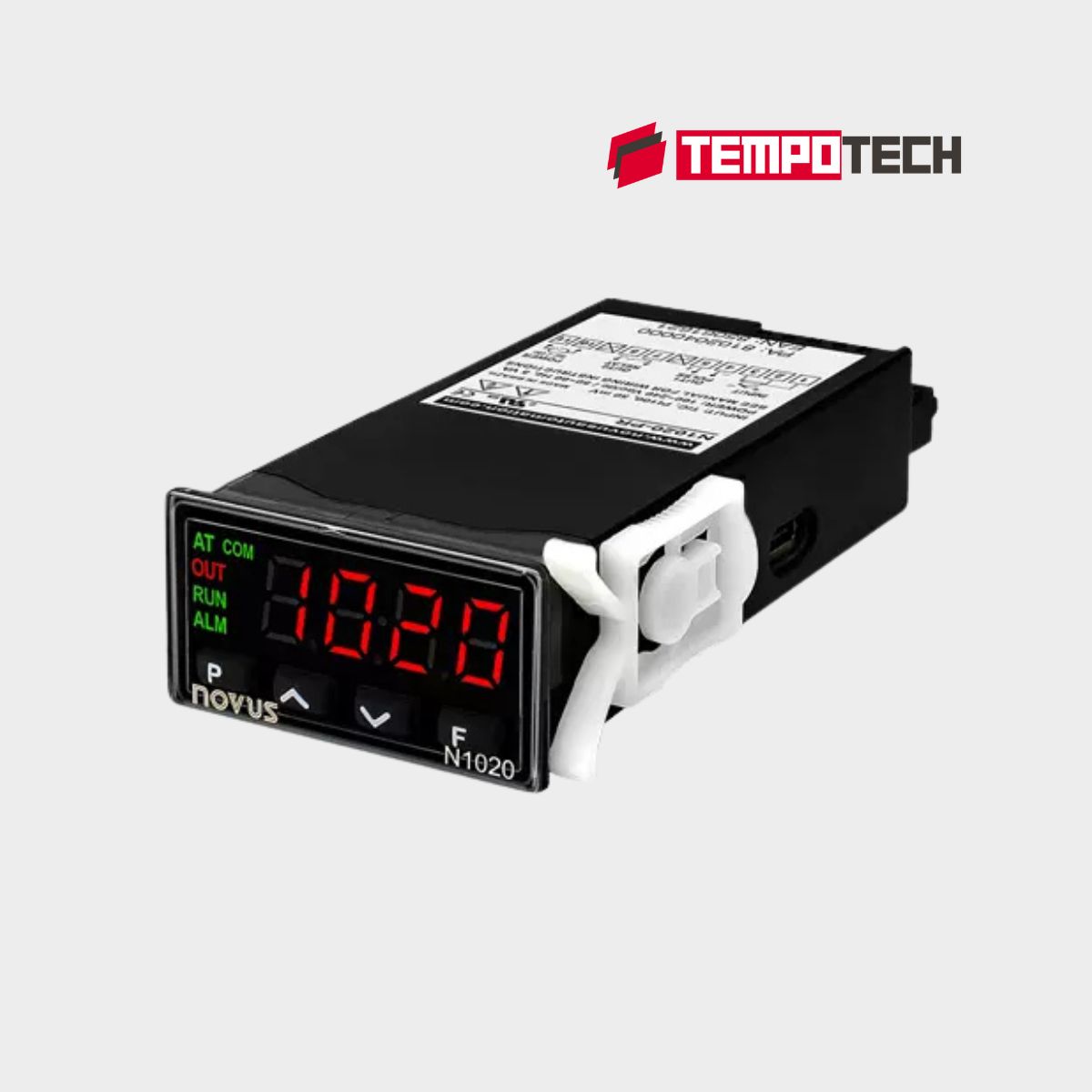

The NOVUS N1020 Temperature Controller is a modern and efficient solution for managing industrial processes. Compact, with a DIN 1/32 format (48 x 24 mm), it is ideal for applications in limited spaces, delivering high precision and reliability. Its self-adaptive PID technology and advanced features make it the perfect choice for those seeking a robust and practical temperature controller.

  • Free Shipping within Canada any order above $75
Category:
  • Power supply:100 to 240 Vac/dc or 12 to 24 Vdc / 24 Vac
  • Universal input: thermocouples, Pt100 RTD and 50 mV
  • Dual output:1 pulse and 1 relay
  • Output functions: control, alarm 1, alarm 2
  • Ramps an soaks:5 programs with 4 segments
  • Front pannel:IP65, polycarbonate UL94 V-2
  • Enclosure:IP20, polycarbonate UL94 V-2Auto-adaptive PID control
  • PID parameters auto-tuning, Configurable alarms with 8 different functions
  • Alarm inhibit function at start up
  • Programmable timer
  • “F” key with 3 possible functions
  • Soft-start function
  • Ramps function, High brightness red LED display
  • Minimum and maximum limits for SP setting
  • Minimum and maximum limits for output value
  • Access password for configuration protection
  • Factory calibration settings restoration feature
  • CE and UL certifications
