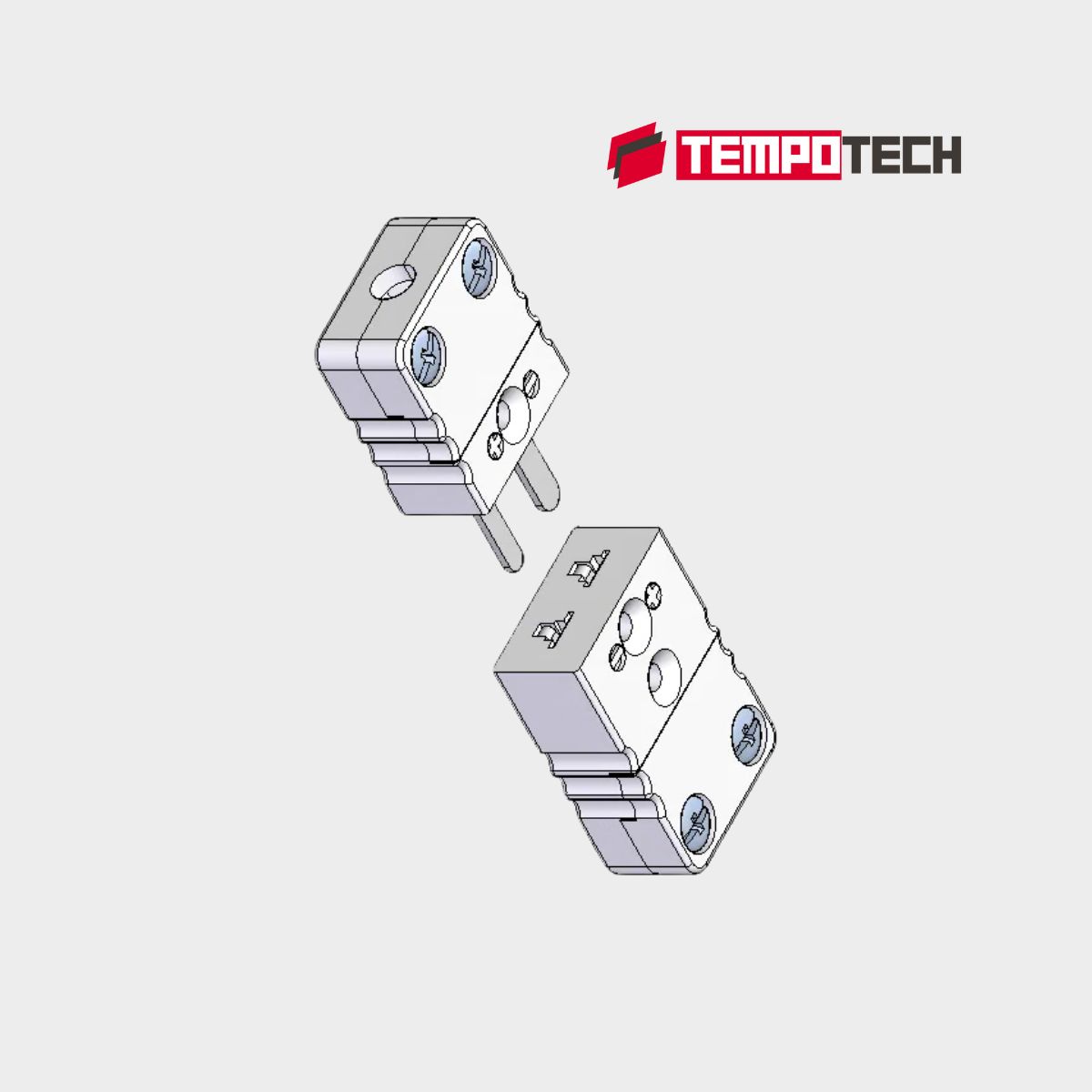

MC-AKP MINIATURE IN-LINE TYPE K PLUG (220° C)
CAD $ 8.16
In Stock
Connector for thermocouple and RTD circuits. Suited for small wires and mineral insulated cables.
Construction
- Glass filled high quality thermoplastic body with original thermocouple material pins and spring loaded inserts.
- Type calibration K,J,T,E,N,R/S and B
- Polarized pins ensure proper connection.
- Easy wire connection through sandwich construction.
- Molded barriers prevent short circuit.
- Rugged one body design.
- Stainless Steel screws with Phillips head
Wire size
- Accepts wires up to 0.6 mm.
- Maximum cable diameter 4.5 mm.
Temperature rating: 220 °C Max.
This product has been added to 1 people'scarts.
In Stock
- Free Shipping within Canada any order above $75
Description
Thermocouple connectors are essential for accurate temperature measurements in various applications, including aerospace, chemical plants, oil & gas, power plants, and steel mills. They provide secure, reliable connections between thermocouples and control systems, ensuring precise data transmission for efficient process control and safety across industrial environments.
